Portable Double-Truss Fabric Buildings

Unlimited Building Options

Are you looking for a versatile, reliable, and heavy-duty building solution? Look no further than our Double-Truss Building!

This engineered portable shelter is perfect for a variety of applications, from storage to industrial, commercial and agricultural uses. With its modular design and unlimited building options, the Double-Truss Building is sure to meet your needs!

Up to 70 ft Building Widths Available by any Length Required
Manufactured in Edmonton, AB – Engineered to Withstand Canadian Winters
2 3/8″ and 2 7/8″ Heavy Wall GatorShield® Galvanized Framework
Our double truss buildings are crafted with durable 14-gauge GatorShield® pipe. Most shelters feature a 2-3/8″ round framework, while our largest options—60′ and 70′ wide—are reinforced with 2-7/8″ round pipe for maximum strength and stability.

Customization Options

Multiple Applications

Up to 70′ Wide

Engineered Double-Truss Buildings

Highly Versatile Portable Fabric Buildings

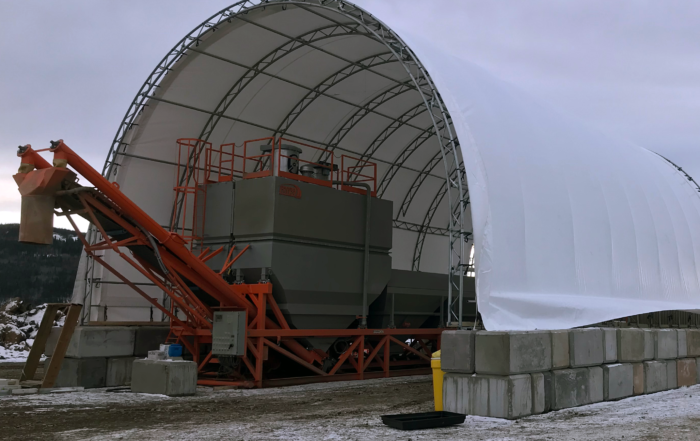

Our double-truss portable membrane buildings are great for industrial, agricultural, and commercial use. Whether you need to store equipment, stockpile materials, build a work-space or manufacturing plant, our portable double-truss shelters are a great solution to any building need you might face!

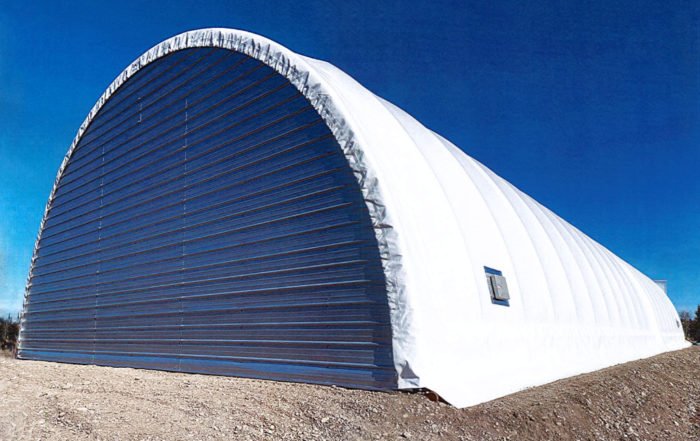

Our double-truss portable buildings are available up to 70′ wide by any length required. Our buildings feature cladded metal end walls, with a sliding door and an entry door on one end. Various customization options are available.

Front of a Titan Series Double-Truss Fabric Building

38' wide by 60' long Double-Truss Portable Building

Six Colours to Choose From

White, Translucent (Clear), Red, Silver, Blue or Green

Galvanized Framework

2 3/8” & 2 7/8″ (14 Gauge) Galvanized Framework

Canadian Materials Only

High-Quality Materials Sourced from Within Canada

Six Colours to Choose From

Frame and Cover Can Be Customized to Meet Your Needs!

Designed and Manufactured to Last

Weather All Shelters manufacturers every portable building from high-quality Canadian made materials. Built in Edmonton, AB, Canada, we design and build our shelters with harsh environments in mind!

Premium Steel Shelter Frames Built to Last

Customizable to Any Length You Need!

Standard Series: Up to 50′ wide using 2-3/8″ (14-gauge) GatorShield® galvanized steel tubing.
TITAN Series: 60′ and 70′ wide using 2-7/8″ (14-gauge) GatorShield® galvanized steel tubing for enhanced durability.
Additional Features:
- Metal sheeted doors and/or end walls.
- Unmatched corrosion protection with a bright, shiny, and smooth finish.

Durable NovaShield® Cover Options for Every Need

Standard Material: NovaShield® 400 Series (12 oz.) with exceptional durability.
Upgrades Available: Choose the 400 Series FR (Fire Retardant) or ELITE Series for enhanced performance.
Warranty: 15-year limited material warranty for peace of mind.
Color Variety: Available in Clear, White, Red, Green, Silver, and Blue.
Customization Options: Fire retardant and insulated packages available upon request.
Built to Endure: -60°C cold crack resistance and increased UV protection for long-lasting reliability.

If you require an engineer stamp (A, B or C schedules available upon request), please contact us: info@buyweatherall.ca

It is the owner’s responsibility to acquire the permits needed for their portable building needs.

Get a free quote today!

Building Cover Material Options

Standard

400 Series

12 oz Woven HDPE Scrim
15-Year Limited Warranty
High Strength-to-Weight Ratio
Low Temperature Crack: -60°C (ASTM D2136)
>90% Strength Retention after 2000 hrs Exposure @ 0.77 W/m²/nm
Available in Clear, White, Red, Blue, Green, Silver

Fire Retardant Properties:

ASTM E84-00a (Class 1)

Standard + FR

400 Series FR

12 oz Woven HDPE Scrim with FR Coating
15-Year Limited Warranty
High Strength-to-Weight Ratio
Low Temperature Crack: -60°C (ASTM D2136)
>90% Strength Retention after 2000 hrs Exposure @ 0.77 W/m²/nm
Available in Clear, White, Red, Blue, Green, Silver

Fire Retardant Properties:

ASTM E84-00a (Class 1)
NFPA 701-2015 (Method 2)
NFPA-701(1989)
(Large Scale)
CAN/ULC S109-M87
(Large Scale)

ELITE

ELITE Series

13.8 oz Woven FR-UV HDPE Tapes with Engineered PE FR Film/Coating
20-Year Limited Warranty
High Resistance to Crack Formation
High Level of Abrasion Resistance
Low Temperature Crack: -65°C (ASTM D2136)
>90% Strength Retention after 2000 hrs Exposure @ 0.77 W/m²/nm
Available in White Only

Fire Retardant Properties:

ASTM E84-00a (Class 1)
NFPA 701-2015
(Methods 1 and 2)
CAN/ULC-S102
CAN/ULC-S109
California Fire Marshal
(F-18801)

12 oz. Material Colour Options

All colours (except translucent) are white on the inside. Actual material colour may be different from displayed.

White

Translucent

Red

Blue

Green

Silver

Download NovaShield 400 Series Brochure

Optional Building Packages

Insulation Package

Do you need to keep your equipment running smoothly in the winter? All of our buildings come with an optional insulation package!

Insulating your building is a great option for portable workshops in which your crew has to perform throughout the winter season, especially in the Canadian climate. After insulating, all you need to do is put a heater in your building, and it’ll heat up in no time!

Learn More About Our Insulation Here!

Vertical Lift Door

Our double-truss shelters can be upgraded to a Vertical Lift Door instead of galvanized sliding doors.

This style of fabric roll-up door utilizes a hand crank on the side which rolls the door up (and down) using cables and pipe pockets sewn into the door itself. This ensures the door will work in any weather condition and makes the door super easy-to use!
